R48,499.00 incl. VAT

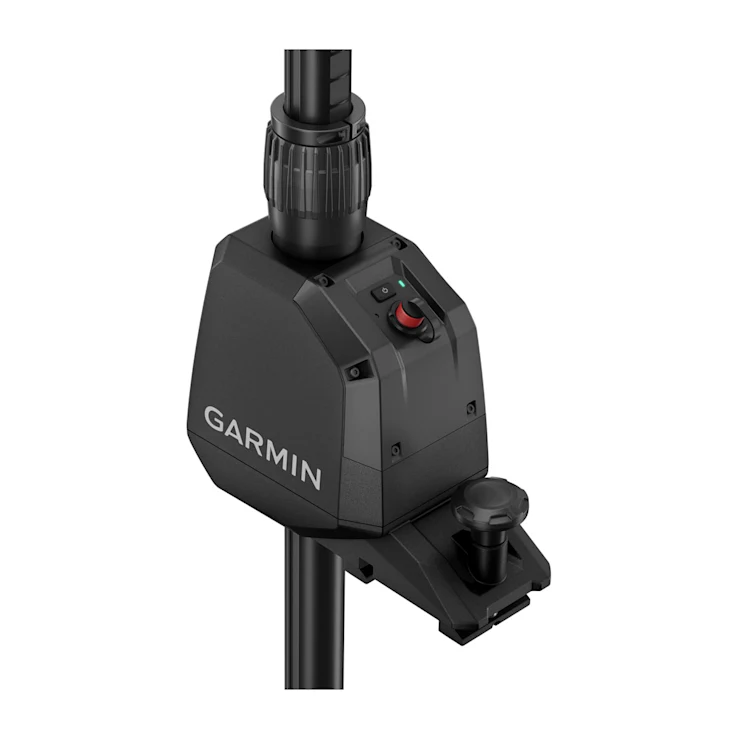

Mount your transducers to Spy Pole, the revolutionary motorised sonar control, to precisely and wirelessly maneuver LiveScope™ and GT360UHD transducers.
 |
 |
 |
 |
 |
| INDEPENDENTLY CONTROL YOUR SONAR WITH WIRELESS REMOTE OR FOOT CONTROL | MOUNT IT TO YOUR TROLLING MOTOR OR YOUR GUNNEL¹ | INTEGRATES WITH YOUR CHARTPLOTTER AND SELECT FORCE® TROLLING MOTORS | BUILT TO HOLD BOTH LIVESCOPE AND 360 TRANSDUCERS | INITIATE MULTIPLE LIVESCOPE CONTROL MODES WIRELESSLY |
WHAT YOU’LL LOVE |
 |
 |
 |
INTUITIVE POSITIONINGKeep your boat where you want it and have full control of your LiveScope sonar from a range of control modes, including SpyLock™ point locking technology, SpyScan™ search mode and SpyLink™ control mode. |
Multiple mounting optionsEasily mount Spy Pole to your Force or Force Pro trolling motor — or mount it directly to your boat’s deck¹. And enjoy smooth dismount with a quick-release system. |
CONTROL AT YOUR FINGERTIPSAttach the included remote to your rod or use it as a handheld to maneuver Spy Pole with a simple turn of the wrist or the press of a button. |
 |
 |
 |
FOOT CONTROLUse the included low-profile, easy-to-use foot control to position Spy Pole, keeping your hands free to fish. |
CHARTPLOTTER INTEGRATIONConfigure and control Spy Pole with your compatible Garmin chartplotter. |
ONEVÜ™ SONARMount the GT360UHD transducer to see OneVü sonar with True Motion technology. Add LiveScope to unlock an additional live overlay in 3D mode. |
SEE MORE OF THE WATER |
 |
 |
 |
 |
TRUE MOTIONWith True Motion technology and your GT360UHD, scans stay true to location as your boat moves. |
SPYLOCKLock your LiveScope sonar on any point of interest, such as a brush pile, rock mound or waypoint. |
SPYSCANAutomatically sweep Spy Pole back and forth in any direction to simplify your search for fish and structure. |
SPYLINKSynchronise with the speed and direction of your Force or Force Pro trolling motor, then control Spy with your Force pedal while in anchor lock. |
General |
|
| Warranty | 3-year, limited lifetime on shaft |
| For use in | Freshwater, brackish water and saltwater |
| Mount style | Quick-release, Reversible |
| Voltage | 10 V-45 V |
| Electric steering | Yes |
| Shaft Length (From Shaft Cap to Shaft End) | 42” or 49” |
| Adjustable Shaft Depth | Yes |
| Water Rating (components ABOVE WATER) | IPX7 |
| Mounting location | Force, Force Pro (included); Deck and Gunnel |
| Deck stabiliser | Yes (included) |
| Dogbone Stabiliser | Compatible, required with 2 or more transducers (not included) |
Electrical features |
|
| POWER INPUT | Wired 2 m (6.5 ft) cable |
| Power usage | 18 W typical; 70 W max |
| Fuse | 8 A |
Transducer Support |
|
| LiveScope™ Adjustable Perspective Bottom Mount | Included: Forward, Down and Perspective at 0° , 7.5°, 15°, 22.5° |
| Supported LiveScope Transducers | LVS32, LVS34, LVS62 (max of one with internal cable routing) |
| OneVü Scanning Transducer Support | Yes |
| Internal Cable Routing | Yes |
| Quick-release Cable Kit | Yes |
Networking & Connections |
|
| Compatible Chartplotters | Wireless |
| Compatible Force Trolling Motors | Wireless |
| Control Accessories | Wireless |
| Maximum Connections | 5 gesture remotes 1 foot control 1 heading sensor 1 trolling motor 1 chartplotter network |

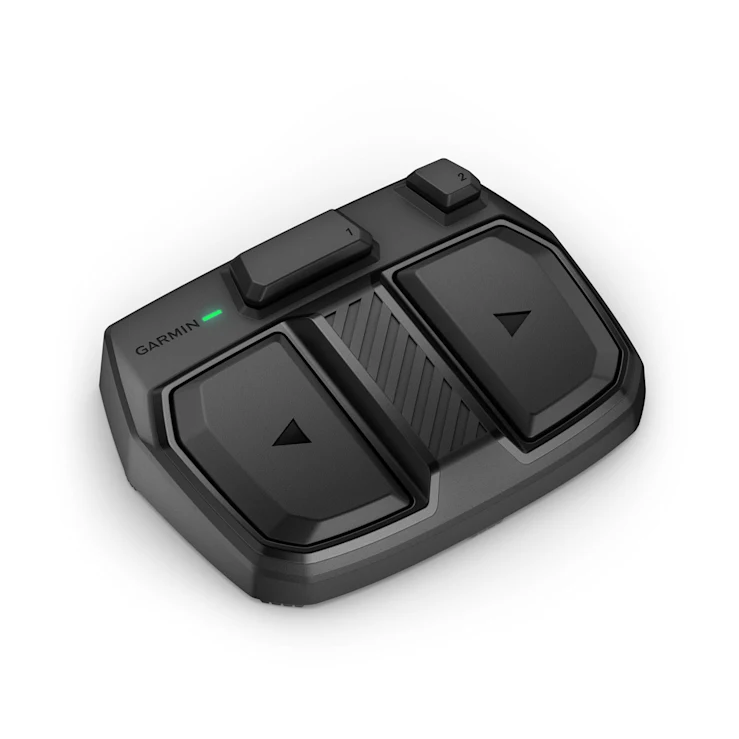

Foot Control |
|
| Dimensions | 7.8” x 5.8” x 1.8” |
| Wireless Communication | Yes |
| Power Supply | 2 AA batteries (not included) |
| Battery Life (Typical Use) | 1 full season |
| Water Rating | IPX7 |
| Programmable Buttons | Yes (2) |
| Status Indication | LED Light |
| Quick-release Mount | Yes |

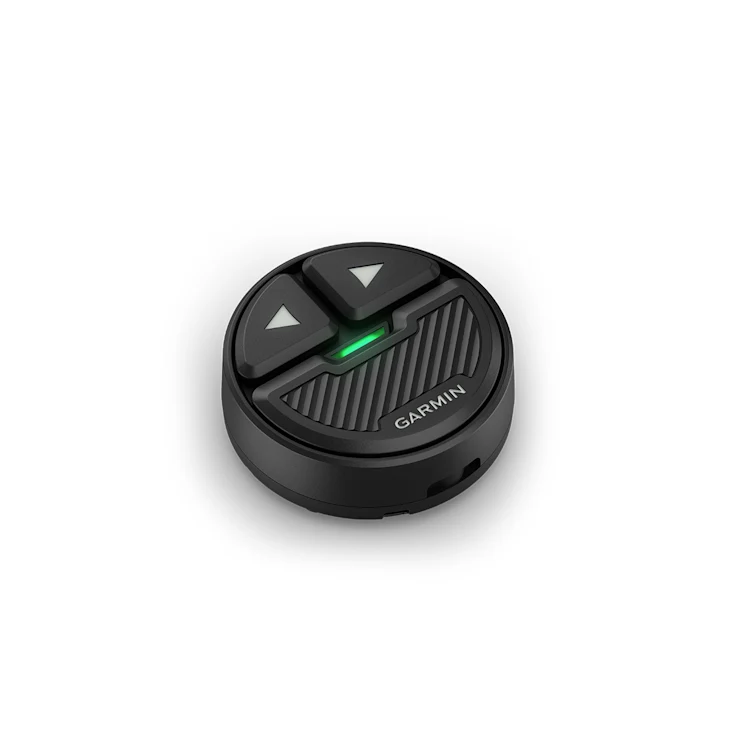

Gesture Remote |
|
| Dimensions | 1.25” diametre x 0.5” thickness |
| Wireless Communication | Yes |
| Power Supply | CR2032 battery (included) |
| Battery Life (Typical Use) | 1 full season |
| Water Rating | IPX7 |
| Programmable Buttons | Yes (3) |
| Status Indication | LED Light |
| Quick-release Mounting Options | 2 rod, hat, handheld with lanyard |
| Floats | Yes (with handheld only) |
| Steering | Yes (swing and twist) |
Heading Sensor |
|
| Dimensions | 3.5” x 2” x 1” |
| Wireless Communication | Yes |
| Voltage | 10 V-45 V |
| Power Input | Wired, 2 m (6.5 ft) cable |
| Power Usage | 0.1 W typical; 1 W max |
| Fuse | 1 A |
| Water Rating | IPX7 |
| Status Indication | LED Light |
What is the Garmin Spy Pole™ used for?
Is the Garmin Spy Pole™ compatible with Garmin Force trolling motors?
Can the Garmin Spy Pole™ be controlled remotely?
Is the Garmin Spy Pole™ suitable for saltwater use?
What accessories are available for the Garmin Spy Pole™?
