Original price was: R49,499.00.R47,250.00Current price is: R47,250.00.

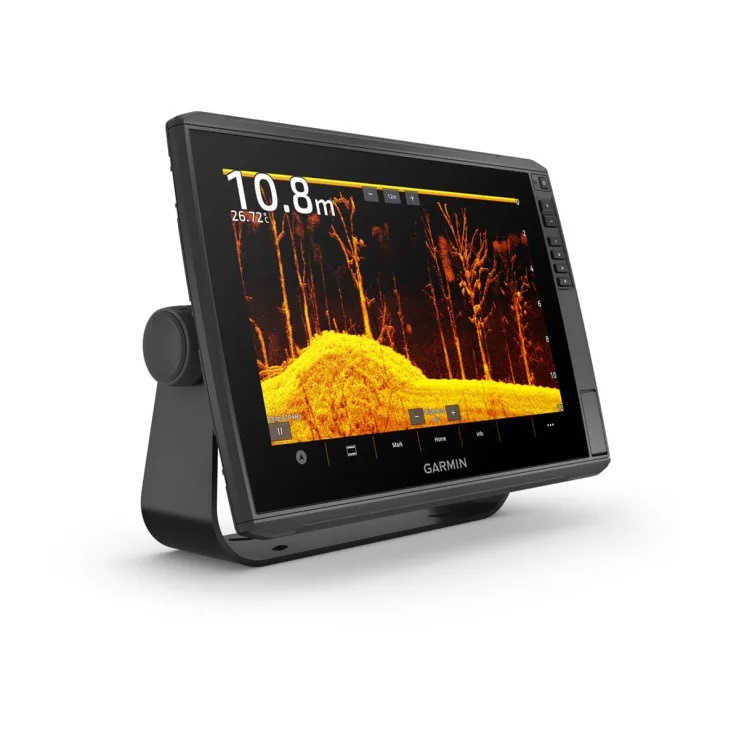

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They support Garmin Navionics+™ and Garmin Navionics Vision+™ mapping and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.
10″ TOUCHSCREENS
SUPPORTS LIVESCOPE™ SONAR1 AND MORE
SUPPORTS GARMIN NAVIONICS+™ AND GARMIN NAVIONICS VISION+™ MAPPING
WIRELESSLY – SHARE SONAR, WAYPOINTS AND ROUTES2
CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES
MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY

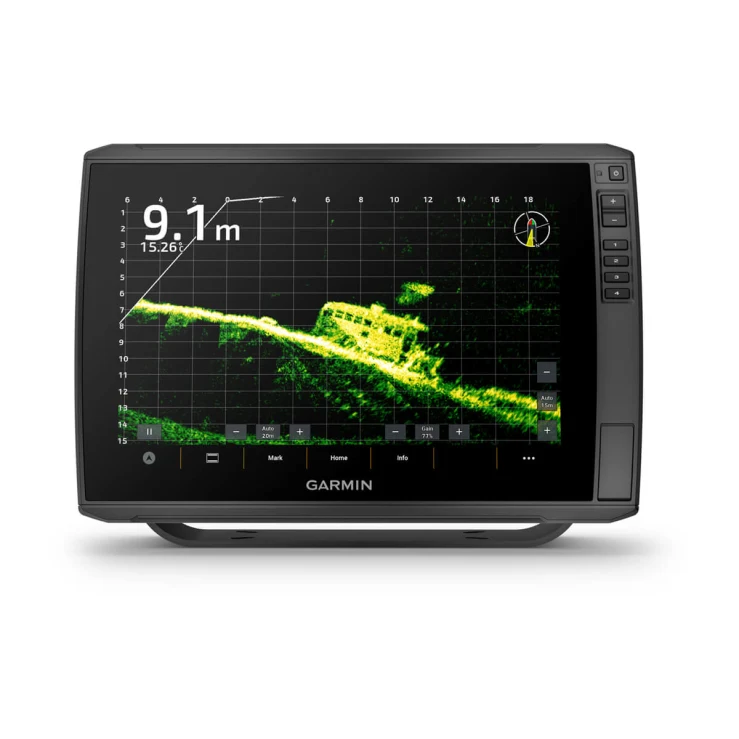

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

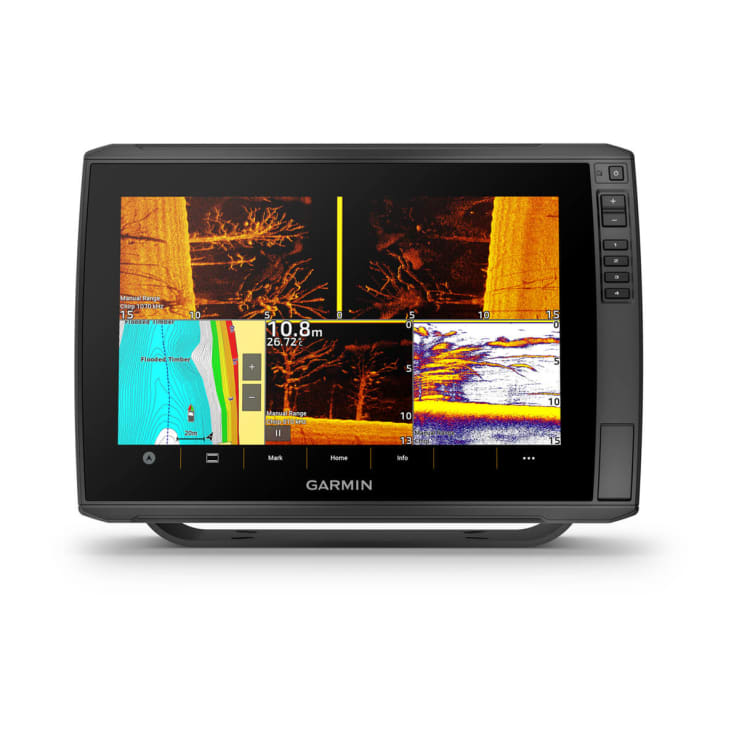

Select models are bundled with a GT56 transducer which provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars for photo-like images of what’s beneath the surface.
High-contrast vivid scanning sonar colour palettes make it easier than ever to distinguish targets and structure.

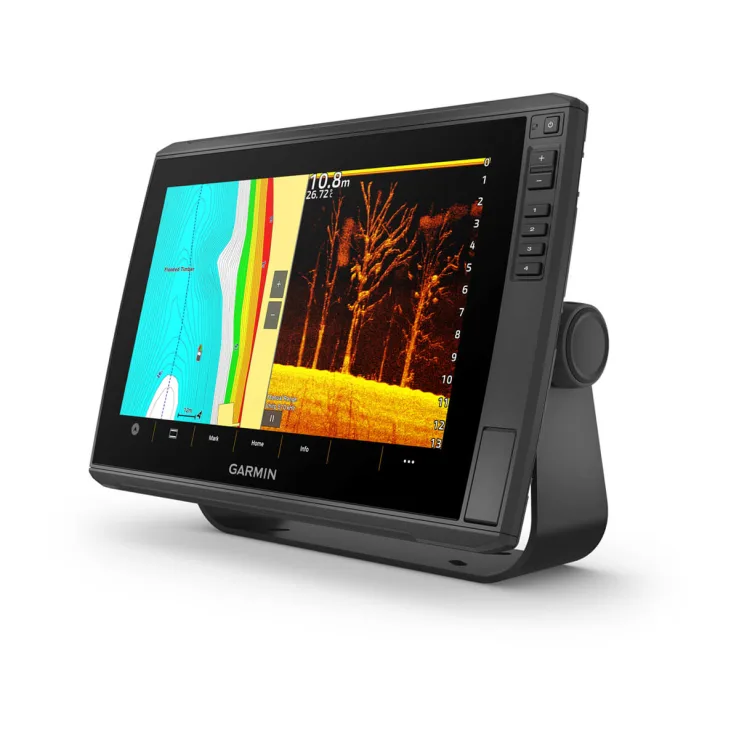

Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics+™ or premium Garmin Navionics Vision+™ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+™ technology and more.
If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.
Get improved position accuracy with multi-band GPS
Connect to heading sensors, autopilots, Fusion-Link™ audio systems and more.
Pair with the free smart-device app for software updates, screen recording, Garmin Quickdraw™ Community data and more4.
Wirelessly connect to your Force trolling motor to navigate to waypoints, draw and follow routes, and more.
The quick-disconnect bail mount lets you quickly install and remove your unit.
General |
|
| DIMENSION | 29.5 x 19.5 x 9.8 cm (11.6″ x 7.7″ x 3.9″) |
| WEIGHT | 1.8 kg (4 lbs) |
| WATER RATING | IPX7 |
| TOUCHSCREEN | Yes |
| DISPLAY TYPE | WXGA, IPS |
| DISPLAY SIZE | 21.7 x 13.6 cm; 21.7 cm diagonal (8.5″ x 5.4″; 10″ diagonal) |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| MOUNTING OPTIONS | Bail or flush |
| INPUT | Touchscreen with Keyed Assist |
Maps & Memory |
|
| ACCEPTS DATA CARDS | 2 microSD Cards |
| WAYPOINTS | 5000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors |
|
| GPS | Yes |
| GLONASS | Yes |
| GALILEO | Yes |
| BEIDOU | Yes |
| HAS BUILT-IN RECEIVER | Yes |
| RECEIVER | 10 Hz |
| NMEA 2000® COMPATIBLE | Yes |
| SUPPORTS WAAS | Yes |
| SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS | Yes |
Optional Map Support |
|
| BLUECHART G3 | Yes |
| BLUECHART G3 VISION | Yes |
| GARMIN NAVIONICS+™ | Yes |
| GARMIN NAVIONICS VISION+™ | Yes |
| TOPO 100K | Yes |
| STANDARD MAPPING | Yes |
| GARMIN QUICKDRAW CONTOURS | Yes |
Chartplotter Features |
|
| AIS | Yes |
| DSC | Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Yes |
| ACTIVECAPTAIN MOBILE PLANNING COMPATIBLE | Yes |
| SAILING FEATURES | Yes |
Electrical Features |
|
| POWER INPUT | 9 to 18 Vdc |
| TYPICAL CURRENT DRAW AT 12 VDC | 2.3 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 5 A |
| MAXIMUM POWER USAGE AT 10 VDC | 34 W |
Sonar Features & Specifications |
|
| DISPLAYS SONAR | Yes |
| POWER OUTPUT | 600 W |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | Built-in 260/455/800/1000/1200 kHz |
| SIDEVÜ | Built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | Yes |
| LIVESCOPE | Yes |

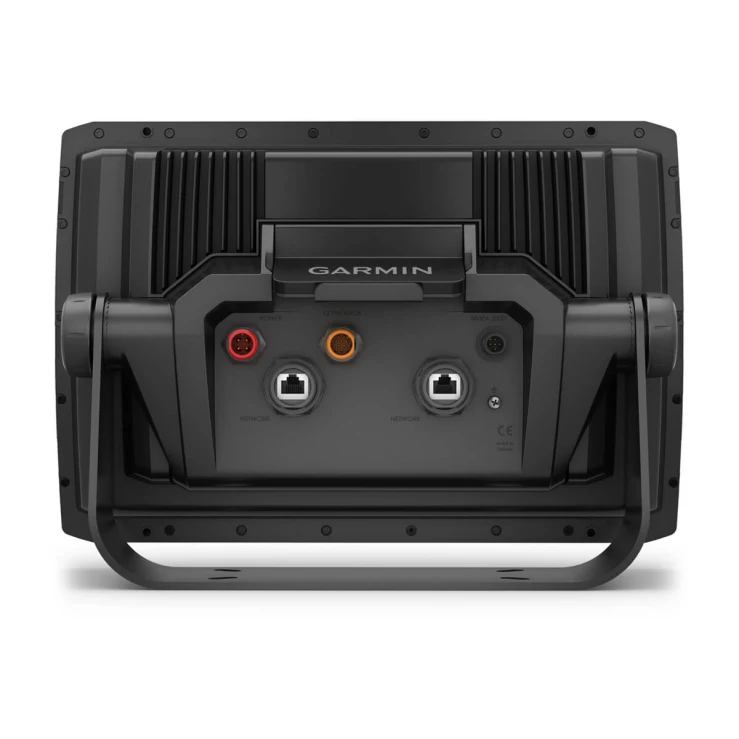

Connections |
|
| NMEA 2000® PORTS | 1 |
| GARMIN MARINE NETWORK PORTS | 2 (large connector) |
| 12-PIN TRANSDUCER PORTS | 12-pin scanning sonar |
| ANT+ (CONNECTIVITY) | Yes |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | Yes |
