Description

OUR CLEAREST SONAR EVER

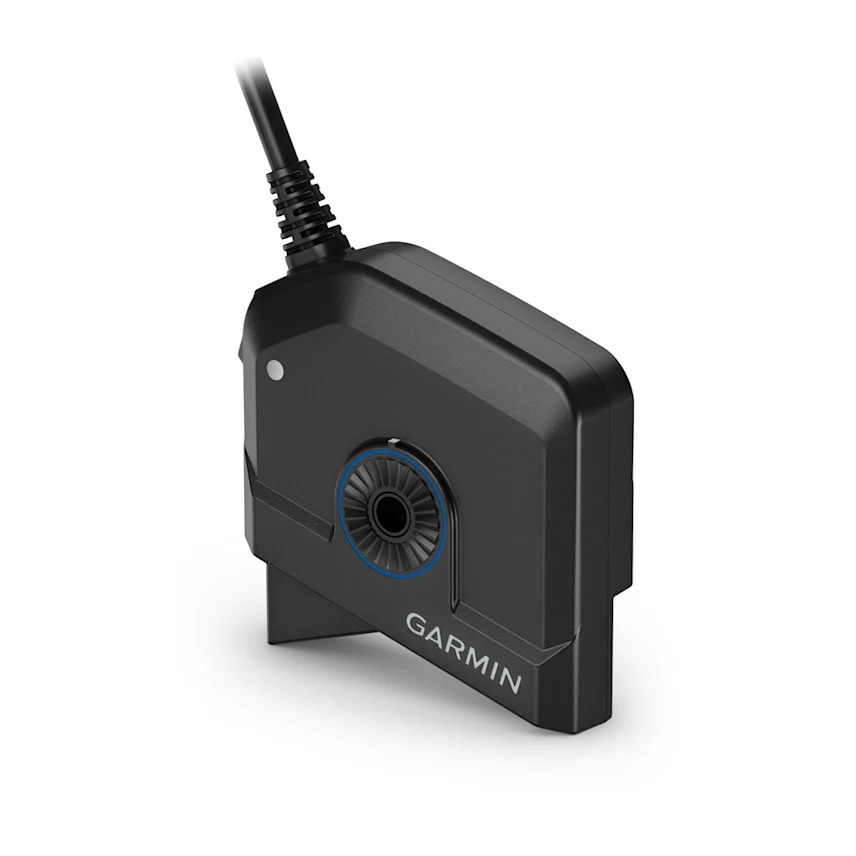

See fish and lures in real time in high definition like never before with LiveScope 2 HD sonar. With ultra-high resolution, integrated image stabilisation and improved stitching, your images are cleaner and crisper.


ULTRA HIGH-DEFINITION IMAGERY WITH BETTER TARGET SEPARATION	NO BLACK BOX NEEDED, SO INSTALL IS EASY	SEE HIGHLY DETAILED IMAGERY AT CASTABLE RANGE AND BOTTOM TRACK OUT TO 125 FEET	SONAR AUTOMATICALLY TURNS OFF WHEN THE TRANSDUCER IS OUT OF THE WATER	WIDER ANGLES IN FORWARD, DOWN AND PERSPECTIVE MODES

WHAT YOU’LL LOVE


OUR CLEAREST SONAR See fish and lures near the boat in up to 50% more detail and 20% higher resolution, reduced sonar artifacts, and smoother images. Plus, bottom track out to 125 feet in freshwater.	NO BLACK BOX The LiveScope 2 HD transducer connects directly to your compatible chartplotter and power source — making installation easy because there’s no black box.	FAST PROCESSING Enjoy fast processing speeds so you can see fish react in real time and know when to set the hook.

INTEGRATED SENSORS Water detection automatically turns off your sonar when the transducer is out of the water. And while it’s in the water, the temperature sensor provides readings.	IMPROVED COVERAGE Wider sonar angles offer better coverage in Forward, Down and Perspective modes. The adjustable Perspective Mode Mount is included.	VIVID COLOUR PALETTES When LiveScope 2 HD is paired with your compatible chartplotter, you can choose from more than 15 vivid colour options to enhance detail and clarity.

TAKE CONTROL OF YOUR VIEW

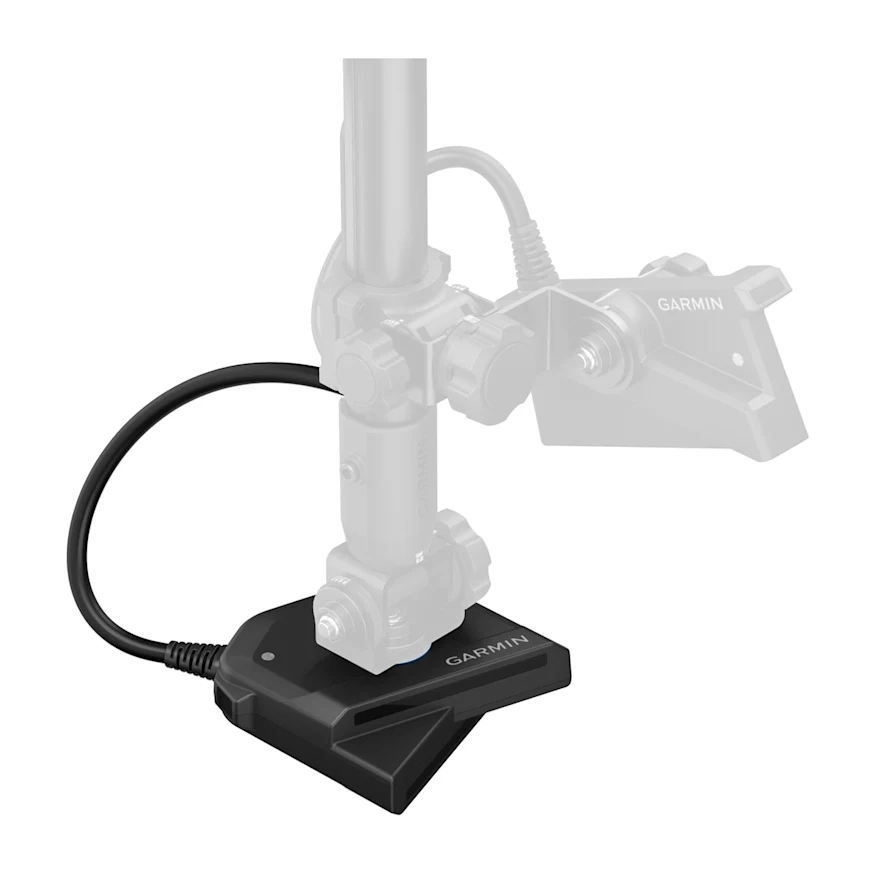

SPY POLE™ MOUNT

Mount your transducer to your Spy Pole to get wireless sonar control independent of your trolling motor.

ONEVÜ™ SONAR

Combine LiveScope 2 HD with GT360UHD to overlay your live sonar onto the 360-degree image for an all-new 3D view.

FORWARD MODE

Scout ahead of your boat to see what’s happening in real time with more coverage.

DOWN MODE

Explore a wider live view of the activity directly beneath your boat.

PERSPECTIVE MODE

Get an overhead wider-angle perspective of what’s below and around your boat.

Specifications

General
Transducer beamwidth	Forward: 20° x 165° Down, Perspective: 20° x 180°
Transducer cable length	5.5 m (18 ft)
Transducer number of pins	7
Dimension	13.3 x 13.4 x 4.8 cm (5.2” x 5.3” x 1.9”)
Weight	1.646 kg (3.62 lbs)
Temperature range	Operating: 0 C to 40 C

Electrical features
Power Input	10-35 V
Power usage	32 W max
Fuse	7.5 A
Compass safe distance	4″

Sonar features & specifications
Frequency	850 kHz-1,600 kHz
Transmit power	521 W
Maximum depth	Down and Forward: 38 m (125’)
Sonar Type	Live
Target Separation @ 100′	32 cm (12.6″)
Target separation @ 30′	14.5 cm (3.8″)
Perspective Mode Mount Included	Yes (adjustable angles)
Water detection transmit control
