SEE THE UNDERWATER WORLD LIKE NEVER BEFORE

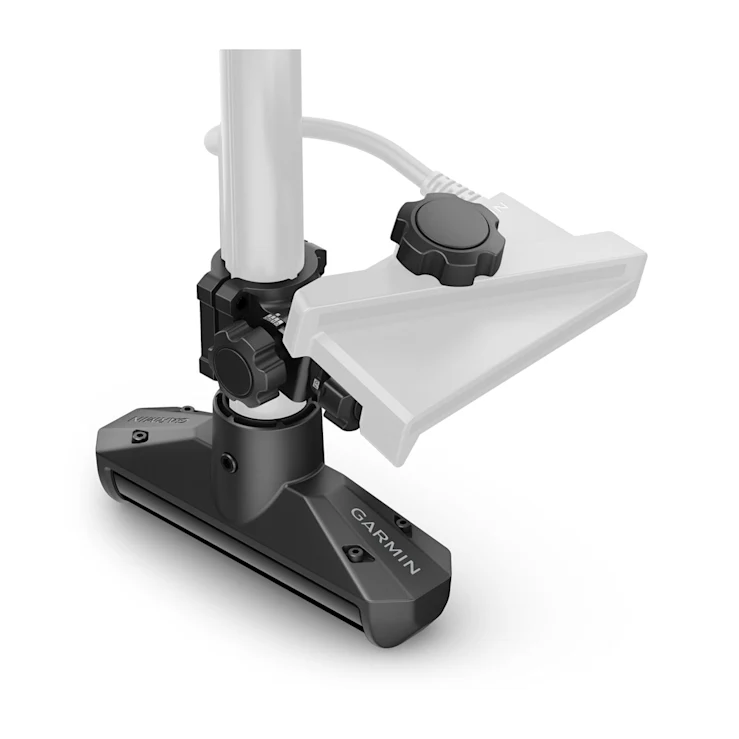

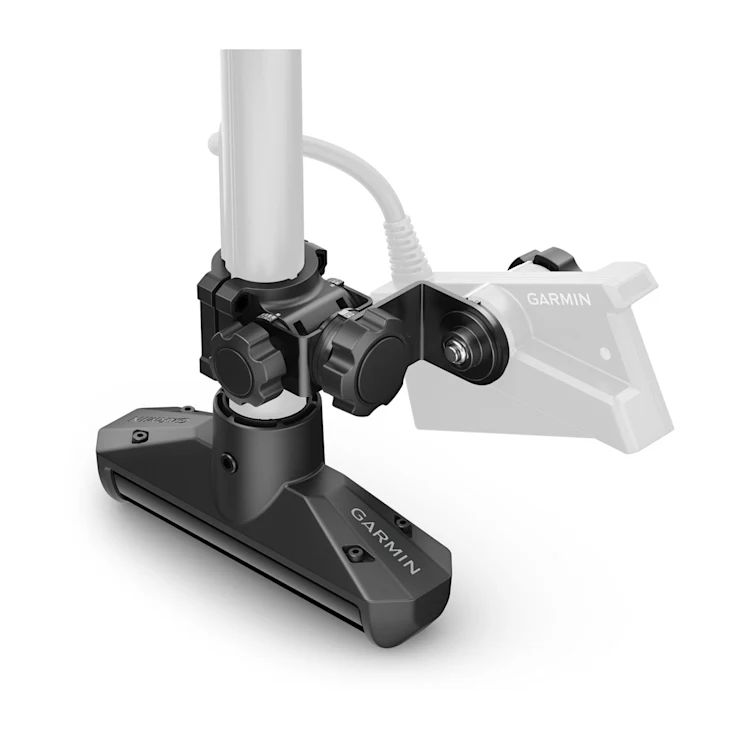

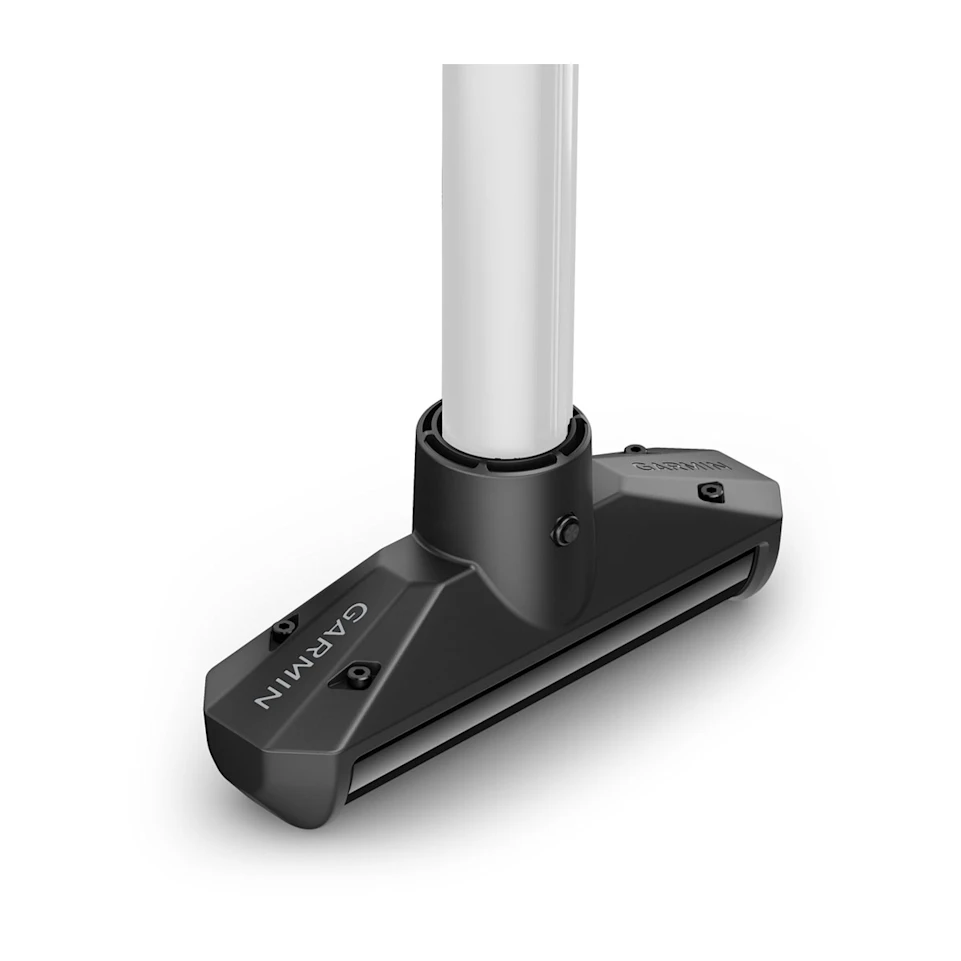

Capture 360-degree imagery of the area around your boat with the GT360UHD transducer when mounted to your Spy Pole™.


CAPTURE CRISP, CLEAR 360-DEGREE IMAGERY	SEE A BIRD’S-EYE VIEW OF WHAT’S BENEATH THE SURFACE	PAIR WITH YOUR COMPATIBLE GARMIN CHARTPLOTTER	GET A LIVE WINDOW INTO 3D IMAGERY WITH LIVESCOPE™ SONAR	TRUE MOTION TECHNOLOGY INTEGRATES WITH GPS TO KEEP SCANS TRUE TO LOCATION	SELECT AUTO, MANUAL OR CONSTANT SCANNING MODES


360-DEGREE ONEVÜ™ SONAR Unlock the toughest underwater hiding spots with OneVü sonar, the crisp, clear 360-degree underwater imagery in 2D or 3D views.	LARGE COVERAGE AREA Scan and store up to a football-field size of imagery in a single power cycle. True Motion technology keeps your true location as you move within the scanned area.	CHARTPLOTTER INTEGRATION Optimise your sonar from your compatible Garmin chartplotter with on-screen controls that let you change scanning modes, adjust sonar frequencies and select vivid colour palettes.

SIMPLE INSTALLATION Easily mount your GT360UHD transducer onto your Spy Pole and run your cables through the shaft.	ENHANCED ONEVÜ EXPERIENCE Layer LiveScope live sonar over the OneVü sonar imagery to see an all-new 3D view — and a beam overlay to see where LiveScope is pointed in 2D mode.	MULTIPLE SCANNING MODES Use your compatible Garmin chartplotter to select the scanning mode that best fits your style of fishing. Choose between auto, manual or constant scan.

Automatically trigger a new scan when your boat travels to a new area.

Capture data only from the areas you want by manually initiating your scan.

Continually scan your boat’s surroundings for consistent data updates as you move.

General
Transducer frequency	OneVü/SideVü: 455 kHz, 800 kHz, 1070 kHz
Transducer power	500 W
Transducer beamwidth	OneVü/SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
Transducer maximum depth	OneVü/SideVü: 500 ft range
Transducer cable length	6.2 m (20.3 ft)
Transducer depth/speed/temperature	Depth and temperature
Transducer number of pins	12
OneVü Source	Yes
Dimensions (with mount; LxWxH)	216 mm (8.5”) x 58 mm (2.3”) x 97 mm (3.8”)

Transducer Support
Transducer frequency	OneVü/SideVü: 455 kHz, 800 kHz, 1070 kHz
