R3,499.00R2,700.00 incl. VAT
The Sound-Panel from Fusion allows you to enjoy high-quality audio in your Camper, without the headaches of installing speakers in areas where space is limited.
 |
 |
 |
 |
| Optimally tuned, sealed enclosure with two 4″ speakers, two tweeters and a passive bass radiator. | Quick and easy installation with only one cutout and one connection required. | Multiple mounting options are available, including flush, recessed and surface mounting. | Stainless steel hardware and grille improve the looks and durability. |
 |
 |
 |
IP65 INGRESS PROTECTIONThe Sound-Panel is designed for life on the road, wherever it takes you. It has an IP65 rating for protection against dust and water. |
ALL-IN-ONE SPEAKER SYSTEMGreat-sounding speakers don’t have to take up a lot of space. The Sound-Panel combines speakers, tweeters and bass into a single tuned enclosure. |

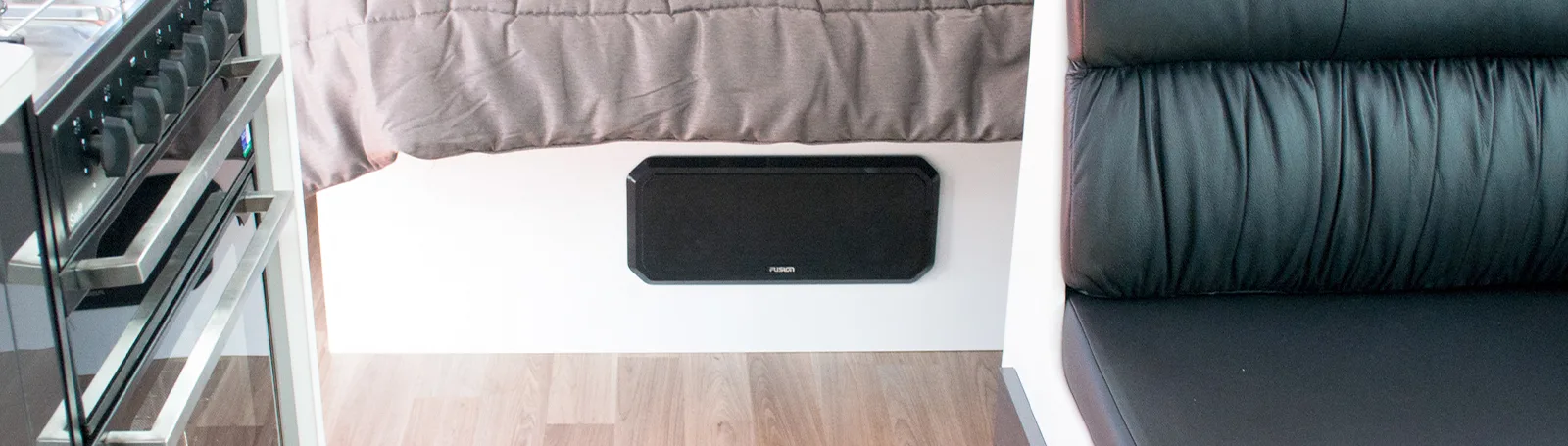

MOUNTING SPACERSWe made installation easy. You can install the Sound-Panel with a conventional flush mount finish or use the mounting spacers (sold separately) for recessed or surface mount installation. |
General |
|
| Physical dimensions (WxHxD) | 18.7″ x 8.43″ x 2.52″ (475 x 214 x 64 mm) |
| Water and dust rating | IP65 |
| Speaker size | 4″ (two) |
| Peak power (Watts) | 100 watts |
| Sensitivity (1 watt @ 1 metre) | 87 dB |
| Frequency response | 67 Hz – 20 kHz |
| Recommended amplifier power (watts RMS) | 5-50 watts |
| Nominal impedance | 4 ohm |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Tweeter type | Soft dome |
| Compass-safe distance | 133.9″ (340 cm) |
| Warranty | 1 year |
Mounting Dimensions |
|
| Mounting dimension clearance (WxH) | 16.97″ x 6.73″ (431 x 171 mm) |
| Mounting depth clearance | 1.61″ (41 mm) |
