R12,499.00R11,220.00 incl. VAT

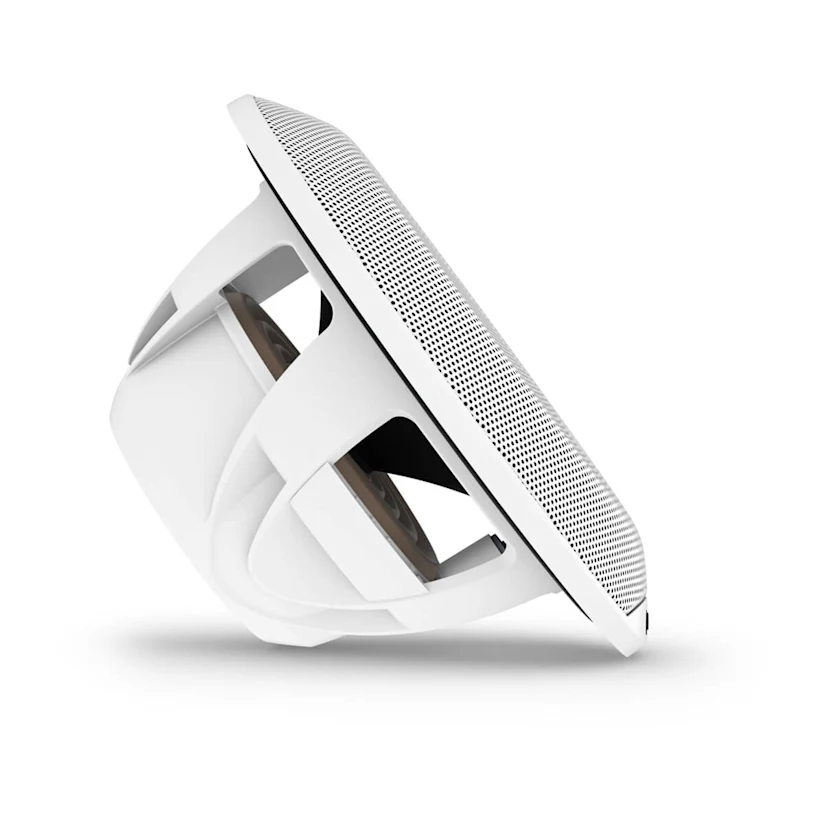

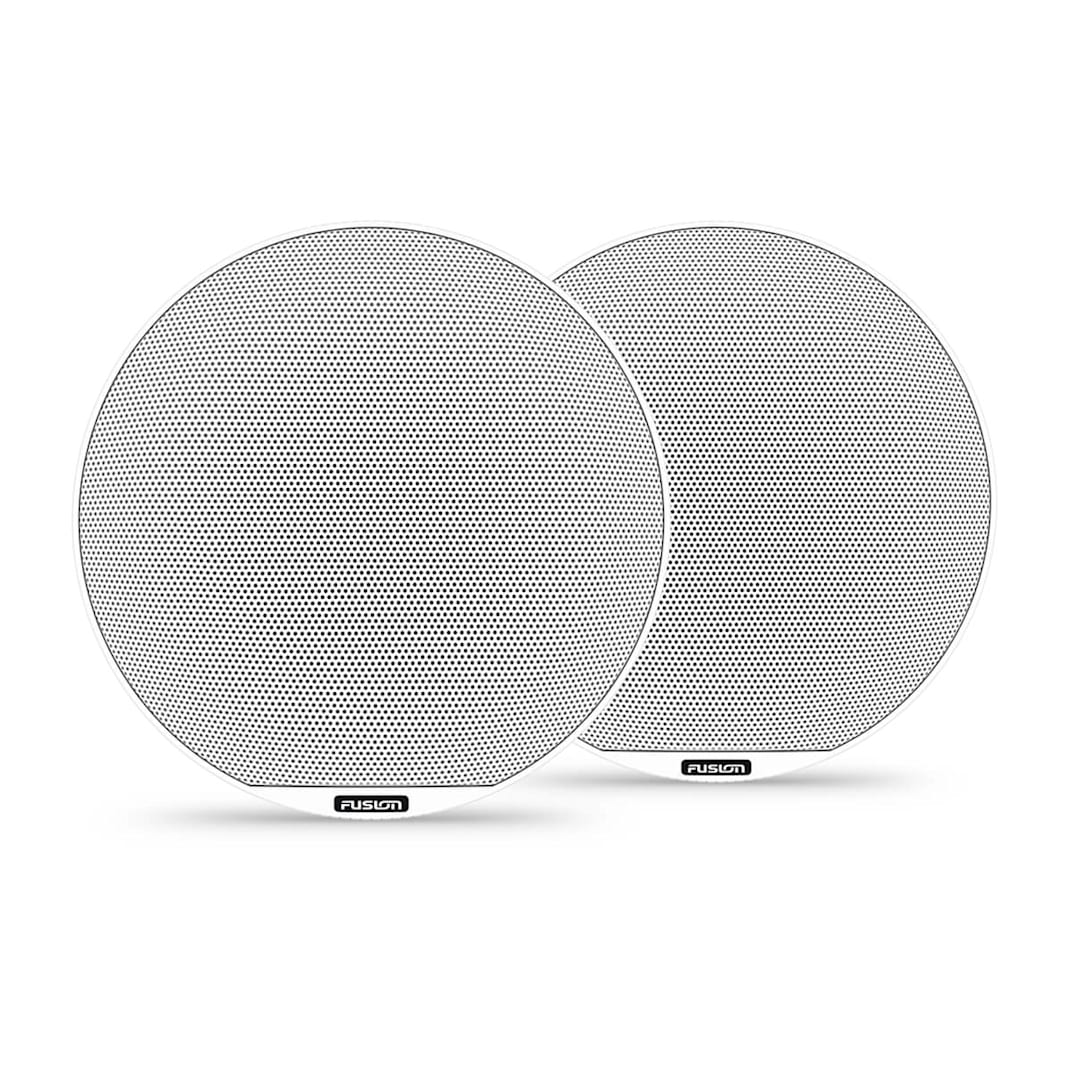

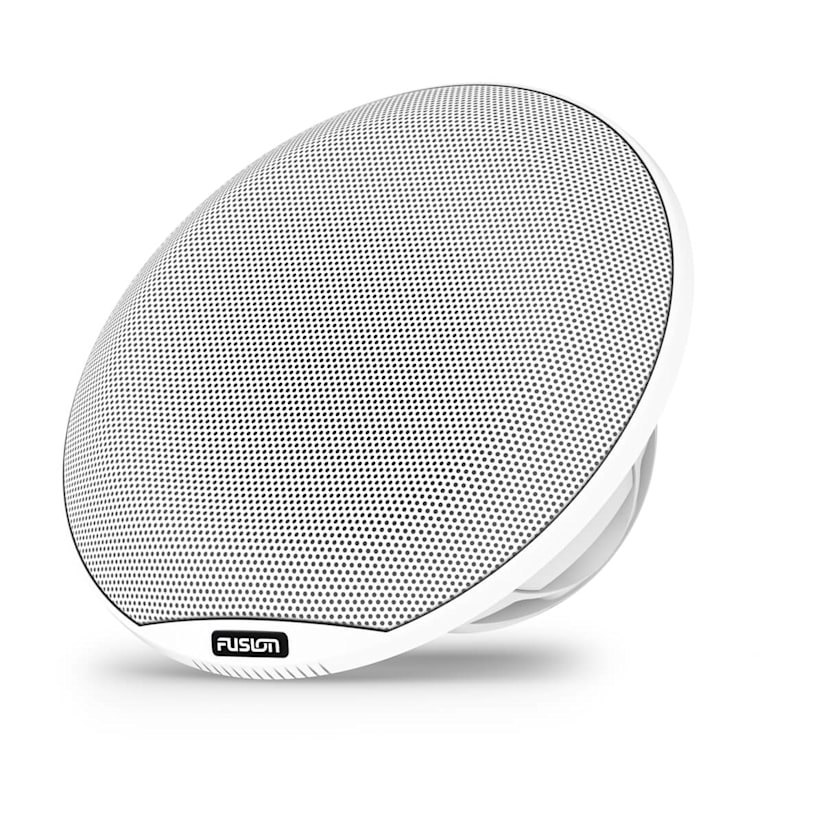

Fusion Apollo coaxial marine speakers deliver immersive, high-fidelity audio on the water and are engineered to withstand harsh marine conditions.
 |
 |
 |
 |
 |
| CRYSTAL-CLEAR PREMIUM SOUND QUALITY | INCLUDED INTERCHANGEABLE SPORTS WHITE OR SPORTS GREY GRILLES | MATCH THE MOOD WITH DUAL-HUE LED LIGHTING RINGS | AVAILABLE IN 10″ AND 12″ SIZES | RIGOROUSLY TESTED MARINISED DESIGN |
WHAT YOU’LL LOVE |
 |
 |
 |
PREMIUM SOUNDEnjoy immersive audio at higher volumes, thanks to updated motor designs which reduce distortion for a premium sound experience. |
LED LIGHTSShowcase your boat with dual-hue LED lighting rings that provide a unique look through the distinct hexagonal tweeters. Choose from a broad range of colours to match the mood or music. |
INTERCHANGEABLE GRILLESComplete your speakers with the included sports white or sports grey interchangeable grilles. For more protection, purchase the shielded grille (also available in grey or white). |
 |
 |
|
 |
FUSION® AUDIO SYSTEMControl your onboard entertainment system from your compatible smartwatch or with the Fusion Audio smartphone app. |
SYSTEM INTEGRATIONPair your speakers with Fusion® head units and amplifiers (sold separately) for the optimal listening experience with minimal distortion. |
MARINISED CONNECTORSEmbedded water-resistant marinised connectors simplify the design and make installation easy; they also meet ABYC requirements. |
FEEL THE BEATPair your speakers with the Fusion® Apollo™ subwoofer so you can feel the music, too. |
 |
 |
 |
SPEAKER GRILLESAll speaker grilles accent the hexagonal tweeter’s anodised mesh cover and complement the dual-hue LED lighting. |
Easy installThe grilles are simple to install without tools and don’t have screws for a seamless look and finish. |
DURABLEFusion Apollo speakers offer a superior level of durability and are built to withstand abuse in harsh marine environments (in accordance with IP66/IP67 rating and ISO 12216 standards). |
General |
|
| Sizes | 6.5″/7.7″/8.8″ |
| Colour | Classic white or Sports white or Sports grey |
| Physical dimensions (Diameter) | 6.5″ (Classic): 200 mm (7.87″) 6.5″ (Sports): 176 mm (6.93″) 7.7″ (Classic): 220 mm (8.66″) 7.7″ (Sports): 196 mm (7.72″) 8.8″ (Classic): 247 mm (9.75″) 8.8″ (Sports): 224 mm (8.82″) |
| Physical dimensions (Depth) | 6.5″ (Classic): 103 mm (4.06″) 6.5″ (Sports): 104.5 mm (4.11″) 7.7″ (Classic): 109.5 mm (4.31″) 7.7″ (Sports): 111 mm (4.37″) 8.8″ (Classic): 131mm (5.16″) 8.8″ (Sports): 133mm (5.24″) |
| Weight | 6.5″ (Classic): 1.35 kg (3 lbs) 6.5″ (Sports): 1.29 kg (2.8 lbs) 6.5″ (Sports) with CRGBW: 1.32 kg (2.9 lbs) 7.7″ (Classic): 1.8 kg (4 lbs) 7.7″ (Sports): 1.76 kg (3.9 lbs) 7.7″ (Sports) with CRGBW: 1.77 kg (3.9 lbs) 8.8″ (Classic): 2.62 kg (5.8 lbs) 8.8″ (Sports) with CRGBW: 2.61 kg (5.8 lbs) |
| Water and dust rating | IP65 |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5″: 75 W 7.7″: 100 W 8.8″: 130 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5″: 90 dB 7.7″/8.8″: 91 dB |
| Frequency response (+/- 3 dB) | 6.5″: 70 Hz-22 kHz 7.7″: 60 Hz-22 kHz 8.8″: 50 Hz-20 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | General 6.5″: 25-160 W/Channel 7.7″: 25-220 W/Channel 8.8″: 30-300 W/Channel |
| LED lighting | Yes – CRGBW (selected Sport models only) |
| LED supply voltage | 10.8-16 VDC (selected Sport models only) |
| LED Load Current @ 14.4 VDC (max) | 300 mA (selected Sport models only) |
| Operating temperature range | 0° to 50° C (32° to 122° F) |
| Cone material | CURV® Cone Technology with rubber surround |
| Tweeter type | Silk dome |
| Warranty | 3 years |
Electrical features |
|
| Compass safe distance | 6.5″: 310 cm (122″) 7.7″: 358 cm (141″) 8.8″: 412 cm (162″) |
Connections |
|
| Speaker connections | Flying Lead with Water-resistant 2-way Connector, 150mm (5.9″) |
| LED connection | Flying Lead with Water-resistant 6-way Connector, 150 mm (5.9″) (selected Sport models only) |
Mounting Dimensions |
|
| Mounting diameter clearance | 6.5″: 136mm (5.35″) 7.7″: 156mm (6.14″) 8.8″: 188mm (7.44″) |
| Mounting depth clearance | 6.5″: 79 mm (3.11″) 7.7″: 86mm (3.39″) 8.8″: 106mm (4.13″) |
| Frontal grille protrusion | 6.5″: 29 mm (1.14″) 7.7″: 29 mm (1.14″) 8.8″: 31 mm (1.34″) |
