These incredibly powerful 18″ and 24″ dome radars have beauty and brains with a black colour option and 50 watts of output power.
 |
 |
 |
 |
 |
| GMR Fantom brings the power. Fifty watts of it, actually. | See targets clearly, and adjust their sizes as needed. | With power save mode, you get to choose when to use full power and when to pull back. | Every second of power usage counts. Cut back even more by choosing your active times down to the second. | MotionScope™ technology shows targets in colour as they move toward you or away. |
HIGH-POWERED RADARThese 50-watt solid-state dome radars have a range from 20’ to 48 nautical miles, even in fog or rain. Plus, they deliver up to 60 RPM rotation speed for a refresh rate that can detect movement at any speed. This time around, we even have a white and black option so you can tailor to your boat. |
HIGH-RESOLUTION RADARHigh-resolution images and high antenna gain help to pick out targets at a distance, while 8-bit true colour imagery enhances target separation. |
MOTIONSCOPE TECHNOLOGYMotionScope uses the Doppler effect to detect moving targets and highlight them in different colours, so you can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface. |
Power save modeThe power save feature lets you choose when you need more power or less, so you have power when you need it and conserve it when you don’t. |
TIMED TRANSMIT MODEWith timed transmit mode, you can even specify active and inactive times down to the second to help reduce power consumption, so you can stay on the water longer than ever. |
INTUITIVE OPERATIONThese radars don’t have any complex user settings to deal with, so they’re easy to install and start using. |
 |
 |
 |

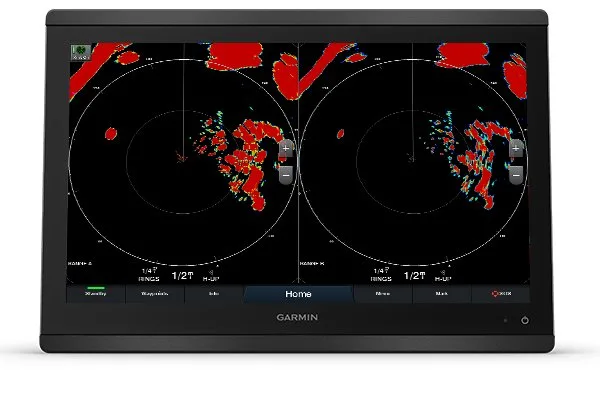

TARGET SIZEAdjust on-screen target resolution for better separation based on your surroundings. |
AUTO BIRD GAINLocate flocks of birds at the water’s surface where baitfish are also likely to be found. |

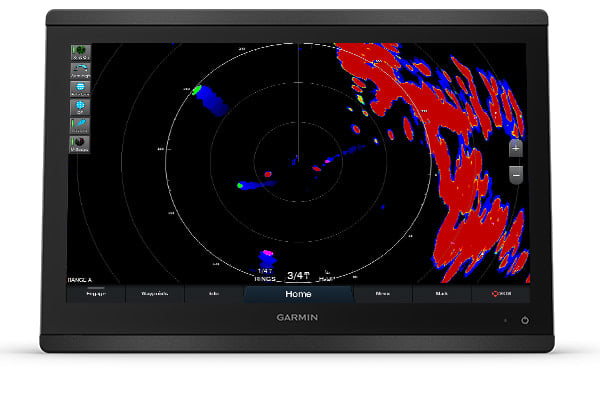

ECHO TRAILSSee a historical ″trail″ on the screen to help you quickly and easily identify moving targets and potential collision threats. |
 |
 |
 |

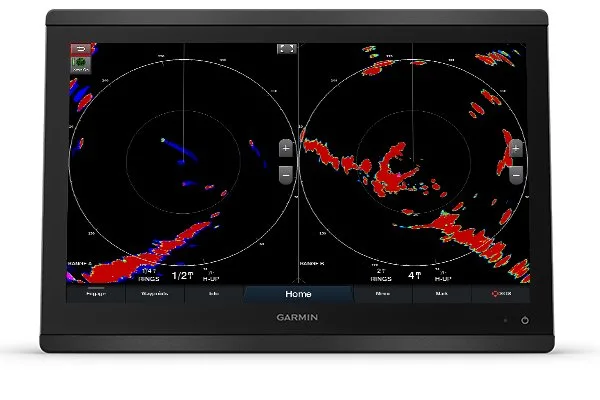

DUAL RANGEThe single radar antenna can provide split-screen images on your chartplotter side by side, with independent range setting and controls for both close and long range. |

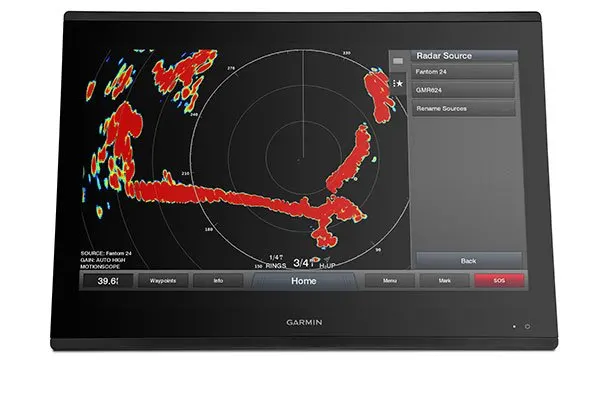

DUAL-RADAR SUPPORTUsing dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources. |
DYNAMIC AUTO GAINThis feature automatically adjusts to your surroundings for optimal performance in all conditions. |
| General | |
| Dimension | 18x: 20″ x 9.80″ (50.80 x 24.90 cm) 24x: 25.40″ x 9.80″ (64.50 cm x 24.90 cm) |
| Weight | 18x: 14.0 lbs 24x: 17.40 lbs |
| Water rating | IPX7 |
| Antenna Length | 18x: 17″ (43.18 cm) 24x: 23″ (58.42 cm) |
| Rotation speed (RPM) | Up to 60 rpm, depending on settings |
| Beam width | 18x: 5.20° horizontal, 25° vertical 24x: 3.70° horizontal, 25° vertical |
| Maximum range | 48 NM |
| Minimum range | 6 metres |
| Radar type | Radome |
| Electrical features | |
| POWER INPUT | 10-32 V DC |
| Power Consumption (standby) | 4 W |
| Max power consumption, transmitting (power save) | 24 W |
| Max power consumption, transmitting (normal mode) | 33 W |
| Transmit power | 50 W |
| Radar features | |
| DUAL RANGE | Yes |
| Overlay | Yes |
| Dual radar support | Yes |
| Auto Bird Gain | Yes |
| Auto Gain | Dynamic |
| MARPA target tracking | Yes (requires heading sensor, sold separately) |
| Echo Trails | Yes |
| MotionScope | Yes |
| Target size | Yes |
| Scan averaging | Yes |
