Spend your time ripping through the woods, not waiting on your friends. This rugged powersport GPS navigator keeps your groups in touch and on track.
The included Group Ride Tracker allows group tracking for up to 20 riders with no mobile phone signal coverage needed. Plus, location sharing and pre-defined messaging1 lets you easily stay connected with your Group Ride friends (VHF range).
Purpose-built for all-terrain use, Tread stands up to anything the elements can throw at it. It’s IPX7-rated for water resistance and built to U.S. military standard 810 for thermal and shock resistance.

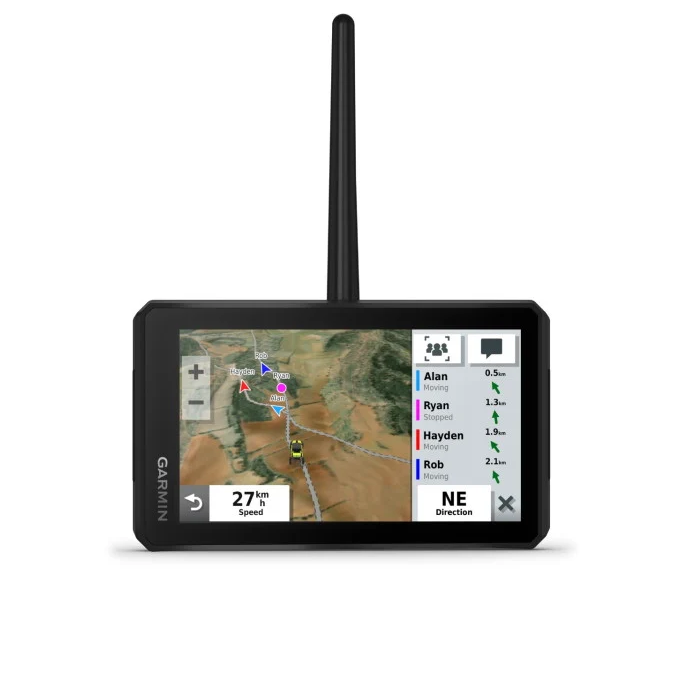

With its ultrabright 5.5″ glove-friendly touchscreen, the Tread navigator is designed for easy viewing in bright sunlight or pitch-dark. It can be mounted in portrait or landscape mode.
Tread features preloaded topographic and street maps of Europe, Africa including Tracks4Africa, Middle East, North and South America, Australia and New Zealand.
Download high-resolution BirdsEye Satellite Imagery over Wi-Fi directly to this navigation device; no annual subscription required.
Use the Tread app2 to sync waypoints, tracks, routes and collections across your devices, including your mobile device, computer and Tread navigator. Easily import and share GPX files, too.

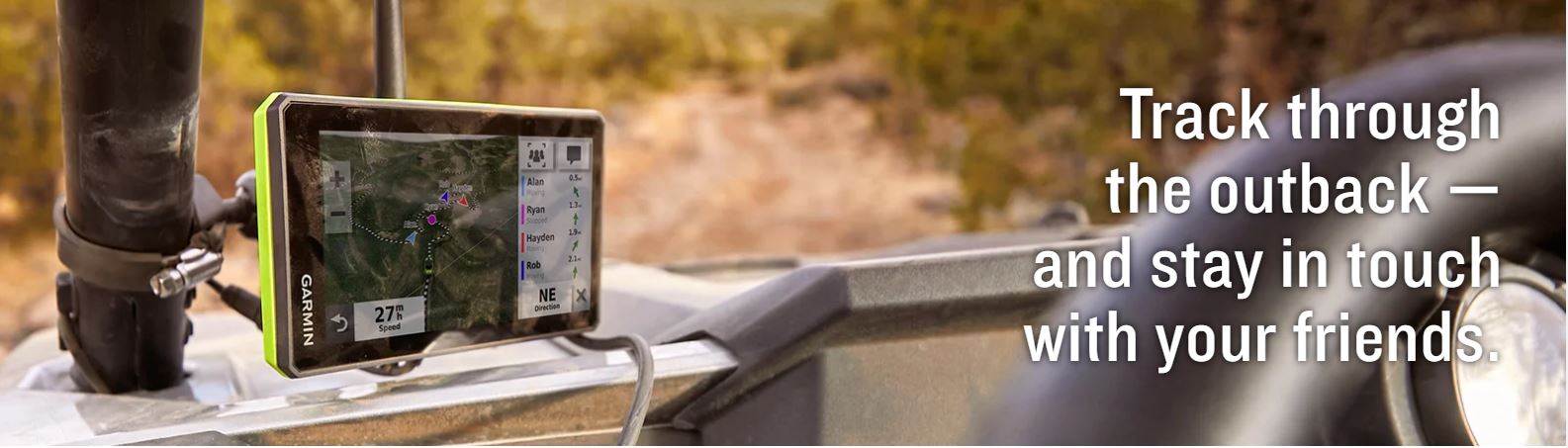

Includes a powered mount, wiring harness with tube mount and a handlebar mount to secure your Tread navigator to the powersport vehicle for riding over rough terrain.
For tough-terrain guidance, built-in sensors include an altimeter, barometer, compass and pitch/roll gauges.
Pair your Tread powersport navigator with one of the compatible inReach global satellite communicators3 (sold separately) for two-way text messaging, interactive SOS and weather.
Spoken turn-by-turn directions if you choose to take Tread with you when you head back to civilisation and want on-road navigation.
Weather ahead? Pair Tread with your compatible smartphone, and download the Tread app to access live weather, animated radar and more2.
A built-in media player lets you easily control music loaded on your compatible smartphone on the sat nav’s display — and hear your tunes through your helmet or headset (sold separately) enabled with Bluetooth technology.
What’s around you? Maximise visibility by pairing your Tread navigator with a rugged BC™ 40 wireless camera with tube mount (sold separately). It easily mounts to your vehicle’s tube frame, flat panel or roll cage.
Pair Tread with the compatible Garmin PowerSwitch™ digital switch box (sold separately) to enable onscreen control for your side-by-side’s 12-volt electronics — light bars, differential locks and more.
Tread comes preloaded with iOverlander points of interest so you don’t need a mobile phone signal to route to the best-established, wild and dispersed campsites.
General |
|
| Dimension | 5.8″ W x 3.5″ H x 1″ D (8.8 x 14.8 x 2.4 cm) |
| Weight | 9.2 oz (262 g) |
| Water rating | IPX7 |
| Display Type | Multi-touch, glass, high brightness HD colour TFT with white backlight |
| Display Size | 4.8″ W x 2.7″ H (12.1 x 6.8 cm); 5.5″ diagonal (13.9 cm) |
| Display Resolution | 1280 x 720 pixels |
| Dual-Orientation Display | Yes |
| Tube mount (1.5″ – 2.375″) | Yes |
| 1″ ball adapter with AMPS plate | Yes |
| Drop rating | MIL-STD-810 |
| Battery type | Rechargeable lithium-ion |
| Battery life | Up to 6 hours (up to 3.5 hours at 100% backlight) |
Maps & memory |
|
| Preloaded street maps | Yes |
| Data cards | microSD™ card (not included) |
| 3D Terrain | Yes |
| Internal storage | 32 GB |
| Ability to add maps | Yes |
| Storage and Power Capacity | Yes (256 GB max microSD™ card) |
| Includes map updates | Yes |
| Downloadable Satellite Imagery | Yes (BirdsEye) |
| BirdsEye Direct Satellite Imagery | Yes |
| TOPO map support | Yes |
Sensors |
|
| GPS | Yes |
| Galileo | Yes |
| Barometric altimeter | Yes |
| Compass | Yes |
Outdoor recreation |
|
| Point-to-point navigation | Yes |
| PRELOADED TOPOGRAPHIC MAPS | Yes |
| Navigate-a-track navigation | Yes |
| Turn-by-turn trail navigation | Yes |
Camera features |
|
| Backup camera compatible | yes (BC™ 40 or BC™ 50) |
Navigation features |
|
| Garmin Real Directions™ landmark guidance | Yes |
| TripAdvisor® Traveller Ratings | Yes |
| Route shaping through preferred cities/streets | Yes |
| Traffic Updates | Yes (with Garmin Tread app) |
| Lane assist with junction view (displays junction signs) | Yes |
| Bluetooth® calling | Yes, works with Bluetooth-compatible helmet, headset or smartphone. BLE capable. |
| Speed limit indicator (displays speed limit for most major roads) | Yes |
Advanced features |
|
| Smart notifications via app | Yes |
| Wi-Fi® map and software updates | Yes |
| Access to live services via app | Yes |
Motorcycle features |
|
| Control music and media from smartphone or MP3 player | Yes |
| Sunlight readable and weather resistant | Yes |
| GARMIN ADVENTUROUS ROUTING™ | Yes |
| Custom map support | Yes |
| Wireless ANT+® technology | Yes |
Camper features |
|
| Easy Route Planner with GPX file sharing | Yes |
Adventure features |
|
| Pair with compatible inReach® devices | Yes |
| Pair with Garmin PowerSwitch™ digital switch box | Yes |
| Compatible with Group Ride Tracker (6”, 8” and 10”) | Yes (included) |
| Compatible with external GPS antenna with mount | Yes |
| Compatible with external inReach® satellite antenna | Yes |
| Group Ride Mobile | Yes (with Garmin Tread app) |
| Track recorder (breadcrumbs) | Yes |
| iOverlander™ points of interest | Yes |
| Pitch and roll gauges | Yes |
| Birdseye Satellite Imagery (download via Wi-Fi) | Yes |
| Glove-friendly touchscreen | Yes |
Group Ride Radio |
|
| Radio Frequency Band | VHF 169.4125/169.4250/169.4375/169.4500/169.4625 MHz |
| Group Ride Range | Up to 8 miles (13 kilometres) with the antenna mount kit |
| Group Ride Tracking | Up to 20 riders simultaneously |
| Group Ride update rate | 5 seconds |
| Radio transmitted canned messages | Yes |
Outdoor applications |
|
| Dog tracking | Yes |
Group Ride Range
Range performance varies based on terrain and other line-of-sight limitations. Here are some examples of typical performance:
